Precision Mold Fabrication

Your formulation,
made any shape.
With exact dimensions.

Synthesis is the hard part. Getting it into the right physical form shouldn't be. We machine precision molds so your compound - drug candidate, reagent, biomaterial, specialty chemical - arrives at the next step in exactly the shape it needs to be. Tolerances to ±20 microns.

Start with Your Geometry Browse Shape Catalog
±20μm
Cavity tolerance
CMM-verified, every lot
72hr
Standard prototype
24hr when it can't wait
No min.
Order quantity
One mold or one thousand
Process

From specification to cast compound.

A four-step workflow designed for scientists, not machinists. You provide the geometry and chemistry context; we handle the tooling and dimensional verification.

STEP 01
Submit Geometry

Upload a CAD file (STEP, IGES, STL) or describe your target form factor in writing. Include cavity volume, dimensional tolerances, and how the compound will be cast or dispensed.

Day 0
STEP 02
Engineering Review

Our team reviews for moldability, draft angles, and chemical compatibility with your compound matrix. DFM feedback in under 4 business hours.

Day 1 · <4hr response
STEP 03
Fabricate & Cure

Master tooling machined to ±5μm. Silicone casting process delivers finished cavity tolerances of ±20μm. Material cast, cured, and post-treated per grade spec. First articles measured on CMM before shipment.

Day 2–3
STEP 04
Inspect & Ship

Full CMM dimensional report, certificate of conformance, and material traceability documentation included. Expedited shipping available for time-critical programs.

Day 3–5 · 24hr expedited
Shape Catalog

Every form your compound might take.

Request a custom geometry →

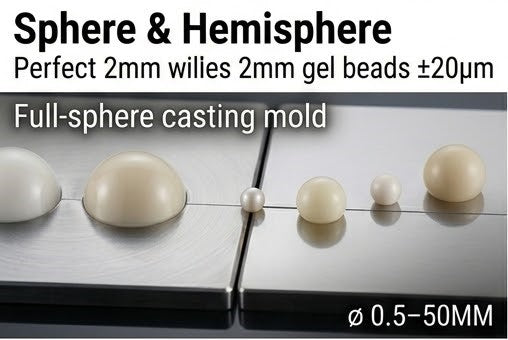

Sphere & Hemisphere casting mold
Sphere & Hemisphere

Full-sphere casting molds for gel beads, microspheres, organoids, and controlled-release drug particles. Two-part alignment precision ±20μm eliminates visible parting lines.

⌀ 0.5–50MM · TWO-PART DESIGN

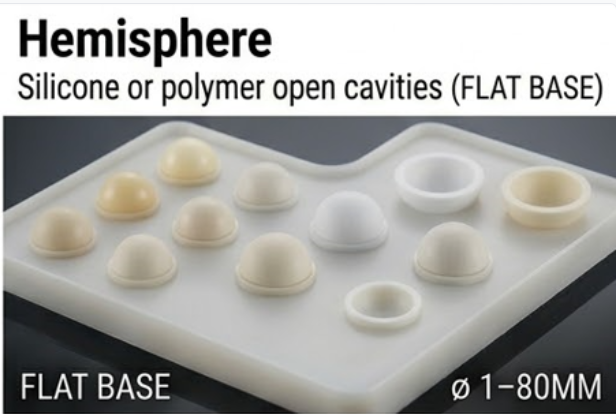

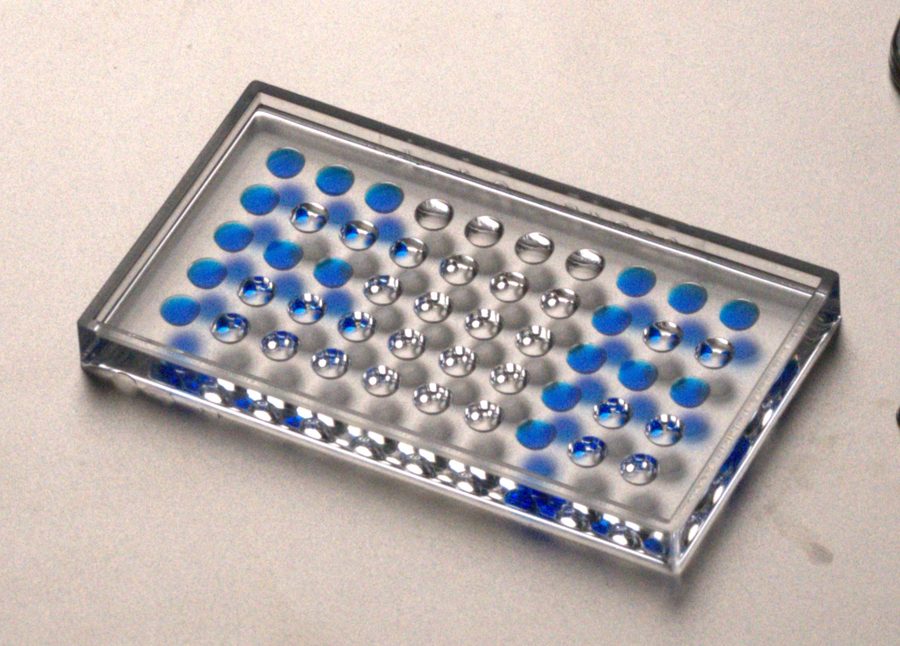

Hemisphere flat-base open cavities
Hemisphere - Flat Base

Open-cavity molds with a flat base. Ideal for single-dose concentrate forms, spheroid culture, capsule halves, and compound arrays.

⌀ 1–80MM · FLAT BASE · OPEN CAVITY

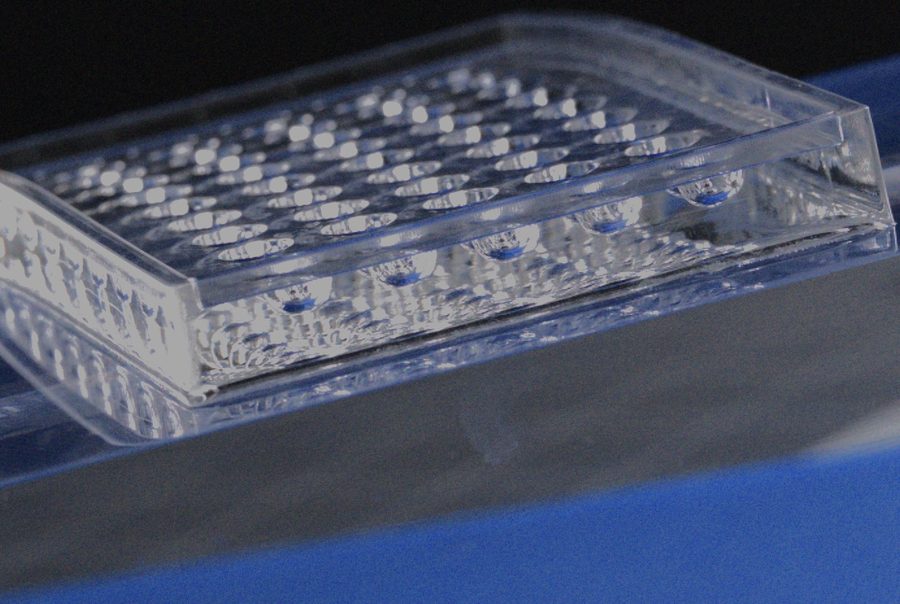

Dome & Lentil profile molds
Dome & Lentil

Shallow dome and lentil profiles for controlled aspect ratios. Used for concentrate shaping, pellet forming, and solid dosage forms where curvature affects dissolution behavior.

3–60MM DIA. · CUSTOM ASPECT RATIO

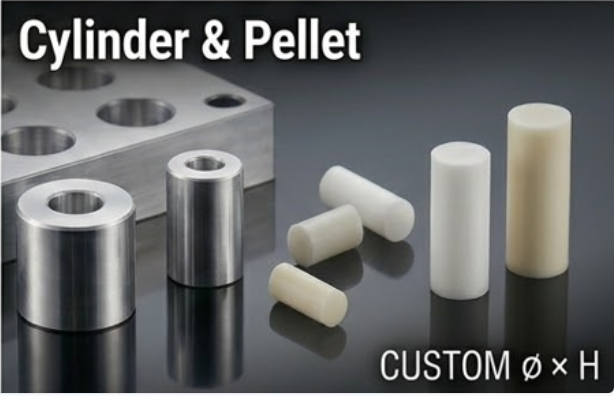

Cylinder & Pellet molds
Cylinder & Pellet

Cylindrical cavities for pellet production, rod-form compounds, implantable drug depots, and column chromatography resin casting. Diameter and height fully specified.

CUSTOM ⌀ × H · IMPLANT GRADE

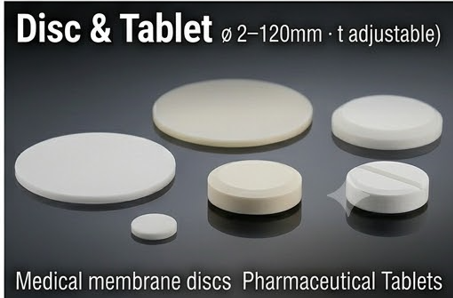

Disc & Tablet molds
Disc & Tablet

Flat disc molds for pharmaceutical tablets, medical membrane discs, calibration standards, and thin-layer compound matrices. Thickness and edge profile specified per application.

⌀ 2–120MM · T ADJUSTABLE · PHARMA GRADE
Custom Geometry
Your compound.
Your geometry.
Built for your purpose.

If it can be dimensioned, we can mold it. Submit a sketch, CAD file, or written spec - our engineers will handle the rest.

STEP · IGES · STL · DXF
OR DESCRIBE IN WRITING
Submit Your Specifications →
Why Form Factor Matters

Shape isn't aesthetic.
It's functional.

For synthesized compounds, the geometry of the cast form directly determines downstream performance. A mismatched form factor can invalidate a formulation study before a single measurement is taken.

  • 01
    Dissolution & Release Rate

    Surface area to volume ratio governs how fast a compound dissolves or releases. Spheres, discs, and cylinders each produce a distinct dissolution curve - the mold geometry is part of the formulation.

  • 02

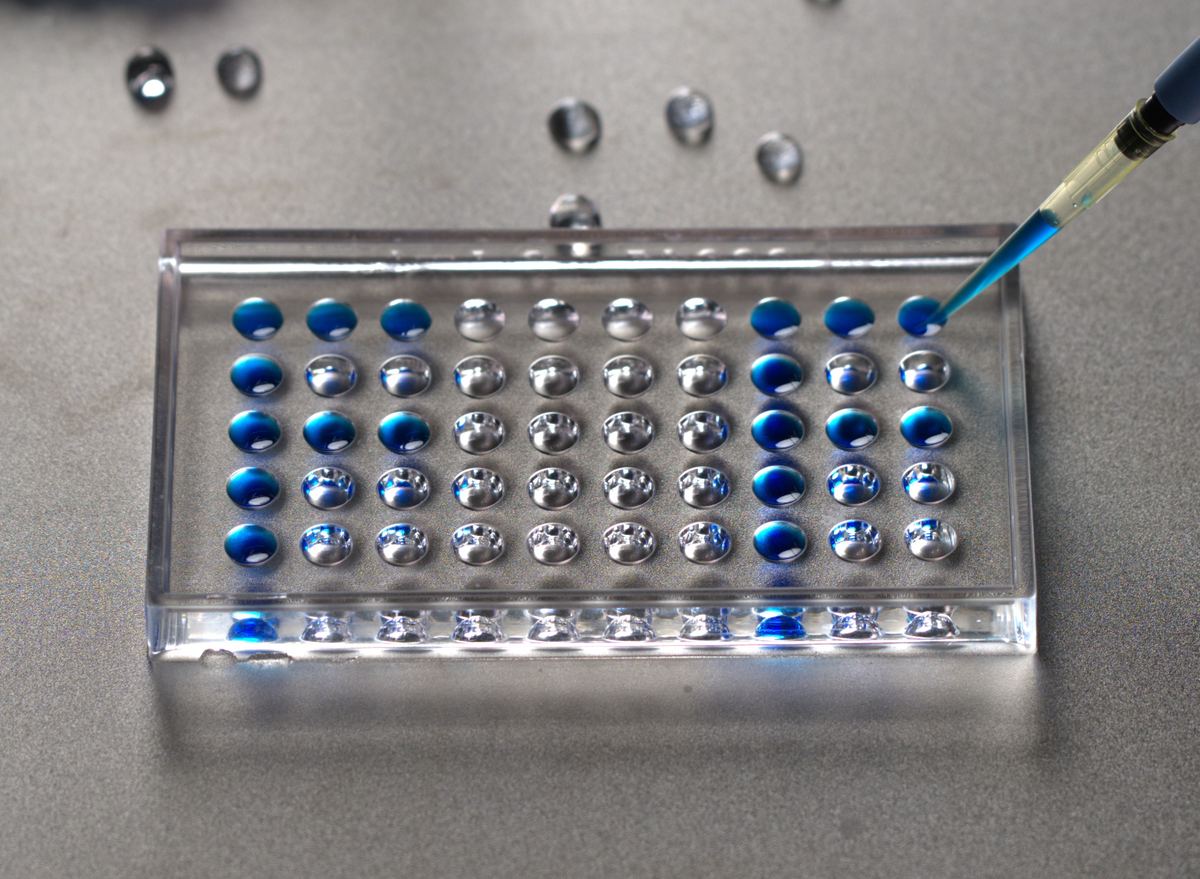

    Dosing Accuracy

    Consistent cavity volume means consistent mass per unit - critical when your compound is costly, potent, or in limited supply. Tolerances to ±20μm translate directly to volume reproducibility - and therefore mass reproducibility for compounds with consistent bulk density.

  • 03
    Process Compatibility

    Certain handling systems - automated dispensers, vial fillers, capsule loaders, analytical instruments - require a specific form factor to function. We match geometry to your downstream process, not the other way around.

  • 04
    Stability & Packaging

    Flat-base discs stack. Spheres above ~1 mm flow freely in bulk; sub-millimetre spheres may require vibratory handling. Pellets pack efficiently. The physical form of a compound affects how it stores, ships, and is retrieved from packaging.

Every geometry dissolves differently. We mold for the curve you need.
Illustrative profiles - relative trends are representative, not compound-specific.
Dissolution curves by geometry: Disc/Tablet fastest, Sphere slowest.

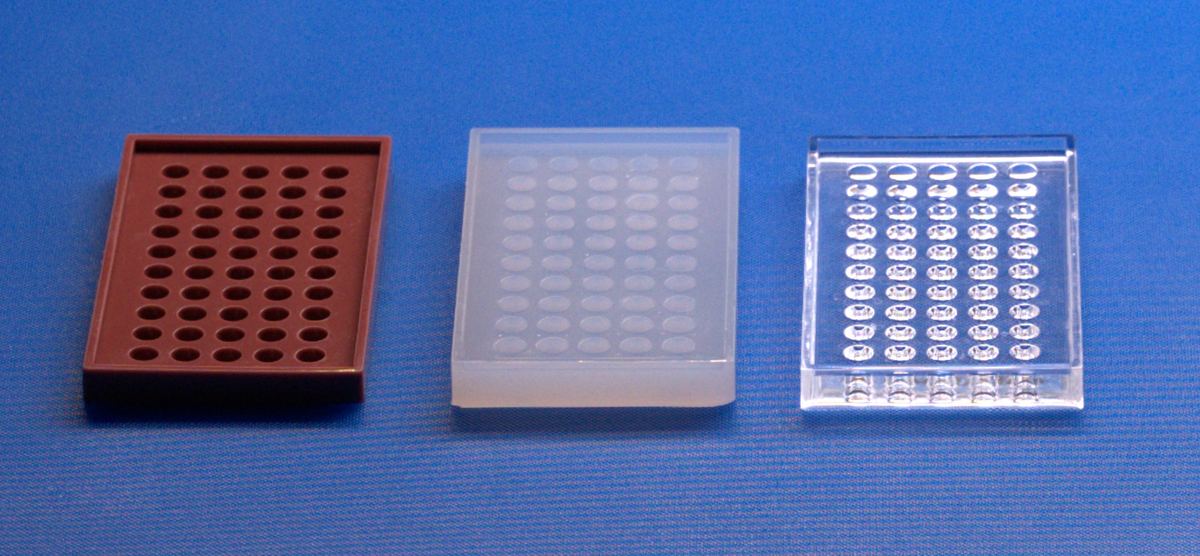

Materials

Built in the right material for your compound.

Mold material isn't neutral - it contacts your compound directly during casting. Silicone is our core specialty, but we also fabricate in acrylic, aluminum, and stainless steel when the application demands it.

Primary · Silicone
Platinum-cured silicone

Our core material. Non-reactive, non-stick, and biocompatible. No tin catalyst byproducts - significantly reduced contamination risk versus tin-cured grades for mass spec, bioassay, and in vivo work. Available Shore 10A–60A and fluorosilicone for solvent contact.

GradeHardnessCompliance
Pt-Si 10A - Ultra-SoftShore 10AISO 10993
Pt-Si 20A - Cell CultureShore 20AISO 10993
Pt-Si 30A - Lab StandardShore 30AUSP Class VI
Pt-Si 50A - Pharma GradeShore 50AFDA 21 CFR
Pt-Si 60A - Rigid ToolingShore 60AFDA 21 CFR

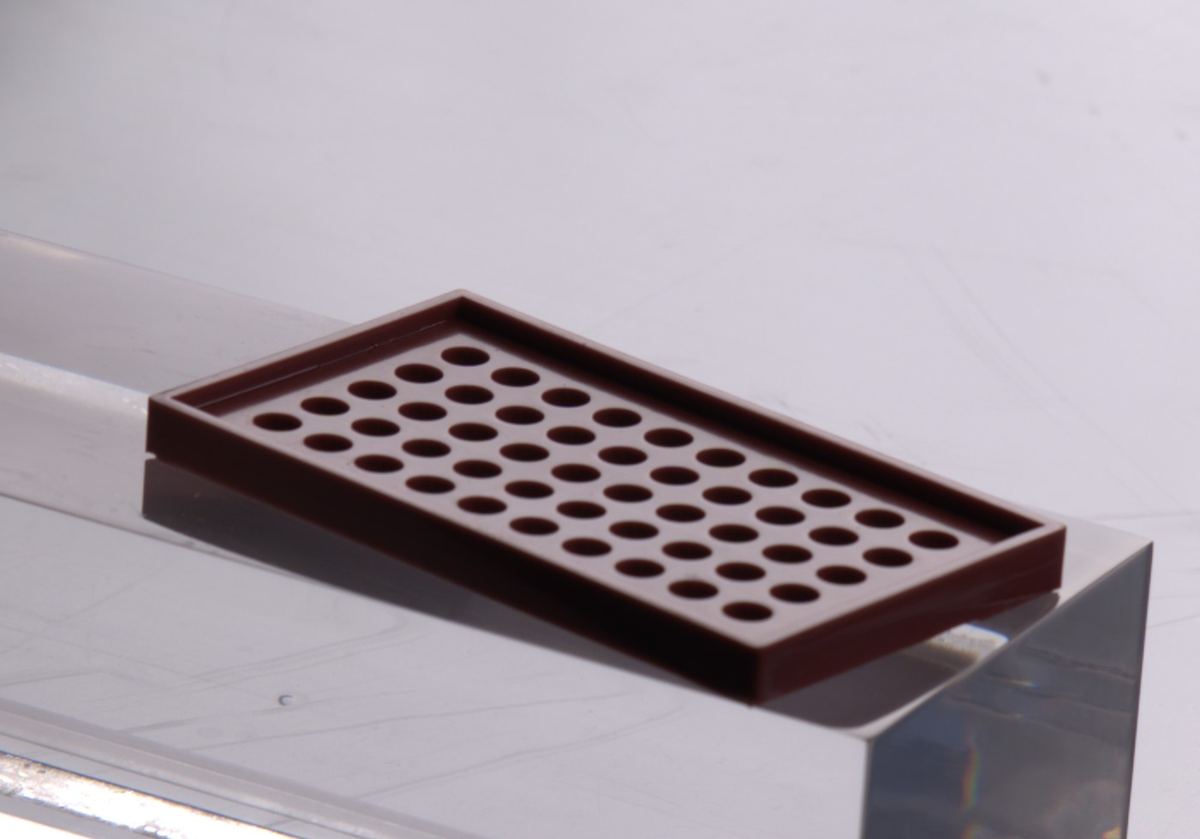

Fluorosilicone - Solvent-ResistantShore 40AChem. Resistant

Post-cured 200°C · Extractables <100 ppm (aqueous, USP <661>) · Traceability certs on request

Also Available · Acrylic
Cast & machined acrylic

Rigid, optically clear mold frames and cavity inserts. Suited to applications requiring visual inspection of the cast compound, UV exposure during polymerization, or where a hard non-flexing mold body is needed for dimensional repeatability.

Optical clarityUp to 92% (flame-polished)
Machining tolerance±50 μm standard
Chemical resistanceAqueous, alcohols
Typical useGel casting, UV cure molds
Surface finishFlame-polished or matte
Also Available · Aluminum
6061-T6 & 7075 aluminum

Hard tooling for higher-volume production runs. Excellent thermal conductivity for temperature-controlled casting, anodizable for chemical resistance, and dimensionally stable under repeated cycling.

Alloy options6061-T6 · 7075-T6
Machining tolerance±20 μm
Surface treatmentHard anodize · electropolish
Thermal conductivity~167 W/m·K
Typical useProduction tooling, heated molds
Also Available · Stainless Steel
316L & 304 stainless steel

GMP-compatible hard tooling for aggressive chemistries, autoclave sterilization, and long-cycle production. 316L preferred for halide-containing casting solvents. Electropolishable to Ra <0.4 μm for cleanroom compliance.

Grade options316L · 304
Machining tolerance±20 μm
Surface finishElectropolish Ra <0.4 μm
SterilizationAutoclave · gamma · EtO
Typical useGMP tooling, aggressive solvents
Who We Serve

From bench synthesis to commercial production.

Whether you're casting ten grams of a novel API for preclinical work or running quarterly production of a specialty reagent, the geometry requirement is the same - and so is our tolerance.

Medicinal & Synthetic Chemistry

Novel drug candidates, lead compounds, and active pharmaceutical ingredients needing a reproducible form factor for preclinical studies. Small-batch prototype runs, no minimum order.

Pharmaceutical Manufacturing

Solid dosage form production, soft gel capsule tooling, controlled-release pellet molds, and lyophilization trays for commercial and clinical-stage drug programs. Full regulatory documentation supplied.

Reagent & Specialty Chemical Production

Calibration standards, immunoassay reagent matrices, synthesized reference compounds, and specialty chemical concentrates requiring dimensional reproducibility across production lots.

Biomaterial & Hydrogel Research

Casting molds for hydrogels, polymer matrices, tissue engineering scaffolds, and bioinks. Shape and pore geometry in these materials directly determines mechanical properties and cell behavior.

Drug Delivery Systems

Implantable drug depots, microsphere suspensions, transdermal patch matrices, and mucoadhesive forms. We work with formulation scientists to match mold geometry to target release kinetics.

Cell & Gene Therapy

Organoid culture substrates, viral vector production trays, lipid nanoparticle casting molds, and cell aggregate forms for GMP-adjacent manufacturing environments.

Get Started

Tell us about your compound.

Submit your geometry, chemistry context, and timeline. An engineer will respond within 4 business hours with a DFM assessment and quote.

What to expect
Turnarounds and specifications at a glance.
DFM review response<4 business hours
Prototype delivery72 hours standard
Expedited prototype24 hours
Production lead time5–10 business days
Minimum orderNo minimum
Accepted file formatsSTEP · IGES · STL · DXF
Dimensional tolerance±20 μm
